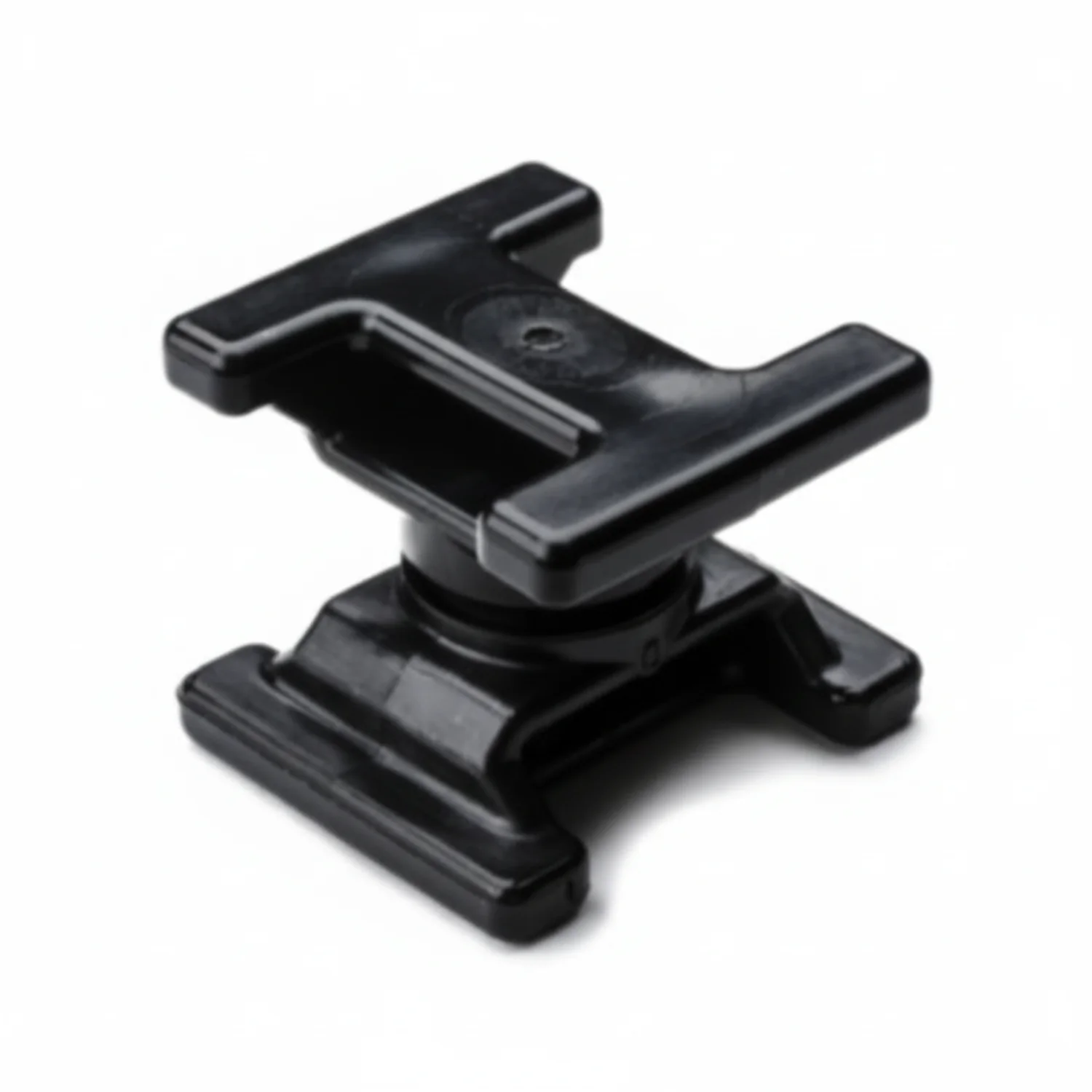

HellermannTyton 151-00644 Dual Swivel Saddle Spacer for T50-T250, Bundle Diameter 0.25 - 3.0", Black, POM, PA66HS, 50/pkg
Length: 0.91"
Width: 0.8"
Bundle Diameter Min: 0.3"
Bundle Diameter Max: 3"
Height: 0.7"
Cable Tie Width Max: 0.5"
Color: Black
Qty/Bag: 50
Material: Polyamide 6.6 heat stabilized (PA66HS) Polyacetal (POM)
Material Shortcut: PA66HS POM
Flammability: UL 94 HB
Operating Temperature (Metric): -40°F to +221°F (-40°C to +105°C) -31°F to +185°F (-35°C to +85°C)
Minimum Extraction Force (Imperial): 100.0
Minimum Extraction Force (Metric): 445
Reach Complaint(Article 33): Yes
ROHS Complaint: Yes
Features & Benefits
•H-profile of the saddles allows for broad surface contact with the bundle, which minimizes pinching and crushing of the bundle.
•Swivels in 360-degree motion to accommodate any area.
•Accommodates T50–T250 ties to handle both light-duty and heavy-duty applications.
HellermannTyton 151-00644 Dual Swivel Saddle Spacer for T50-T250, Bundle Diameter 0.25 - 3.0", Black, POM, PA66HS, 50/pkg
Length: 0.91"
Width: 0.8"
Bundle Diameter Min: 0.3"
Bundle Diameter Max: 3"
Height: 0.7"
Cable Tie Width Max: 0.5"
Color: Black
Qty/Bag: 50
Material: Polyamide 6.6 heat stabilized (PA66HS) Polyacetal (POM)
Material Shortcut: PA66HS POM
Flammability: UL 94 HB
Operating Temperature (Metric): -40°F to +221°F (-40°C to +105°C) -31°F to +185°F (-35°C to +85°C)
Minimum Extraction Force (Imperial): 100.0
Minimum Extraction Force (Metric): 445
Reach Complaint(Article 33): Yes
ROHS Complaint: Yes
Features & Benefits
•H-profile of the saddles allows for broad surface contact with the bundle, which minimizes pinching and crushing of the bundle.
•Swivels in 360-degree motion to accommodate any area.
•Accommodates T50–T250 ties to handle both light-duty and heavy-duty applications.
