Saddle Support Mounting Base UV Black #10 Screw 100/bag Part #CTM10-0C

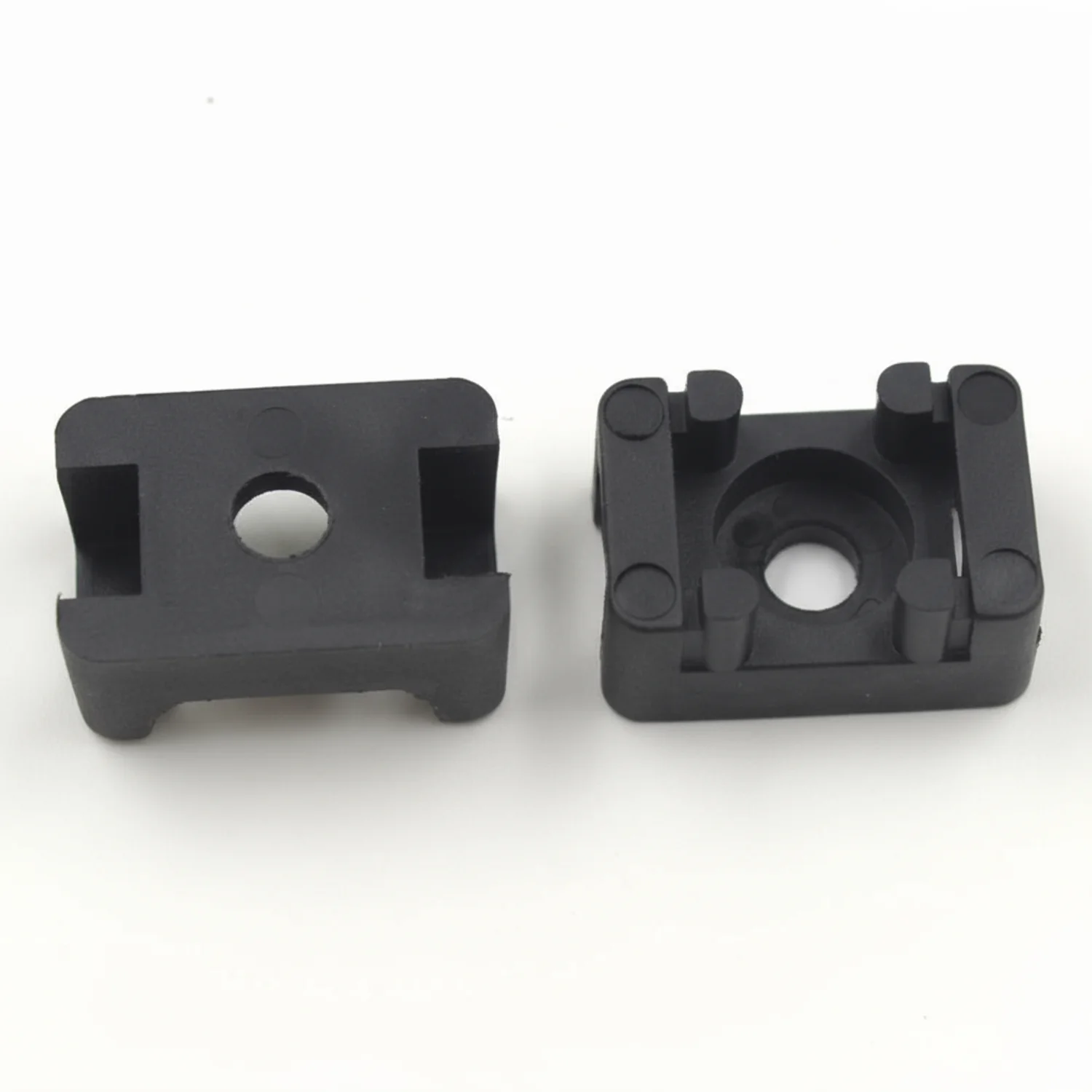

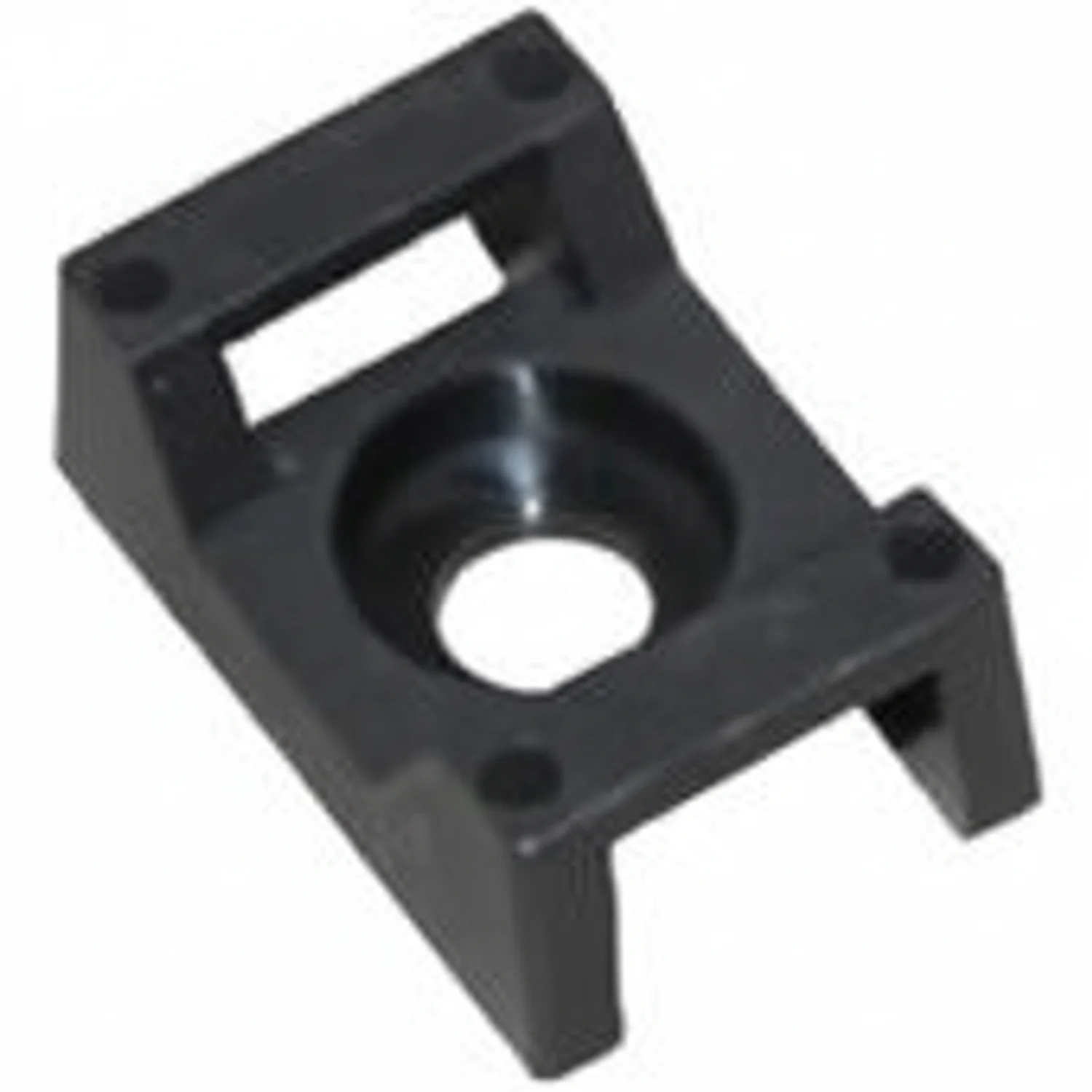

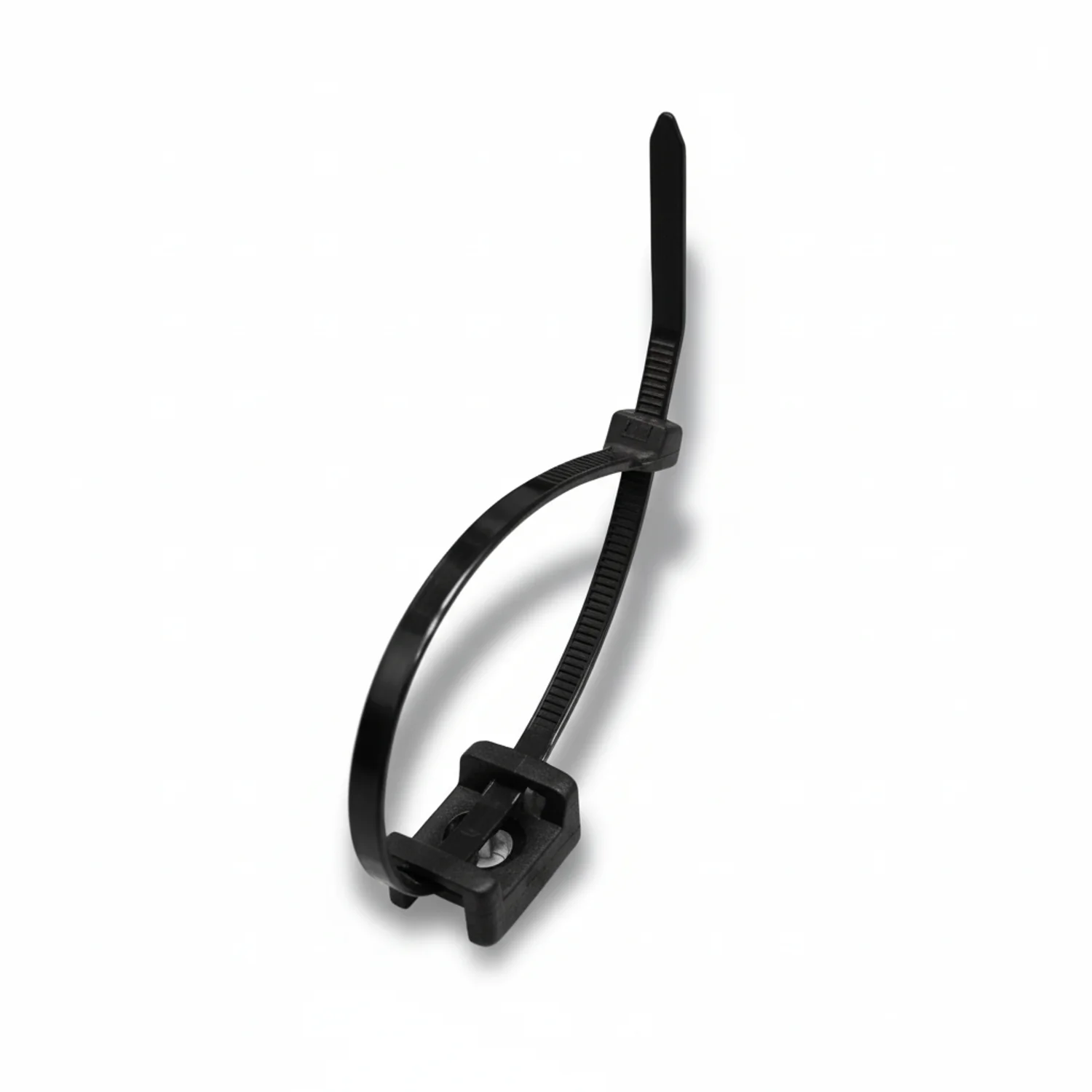

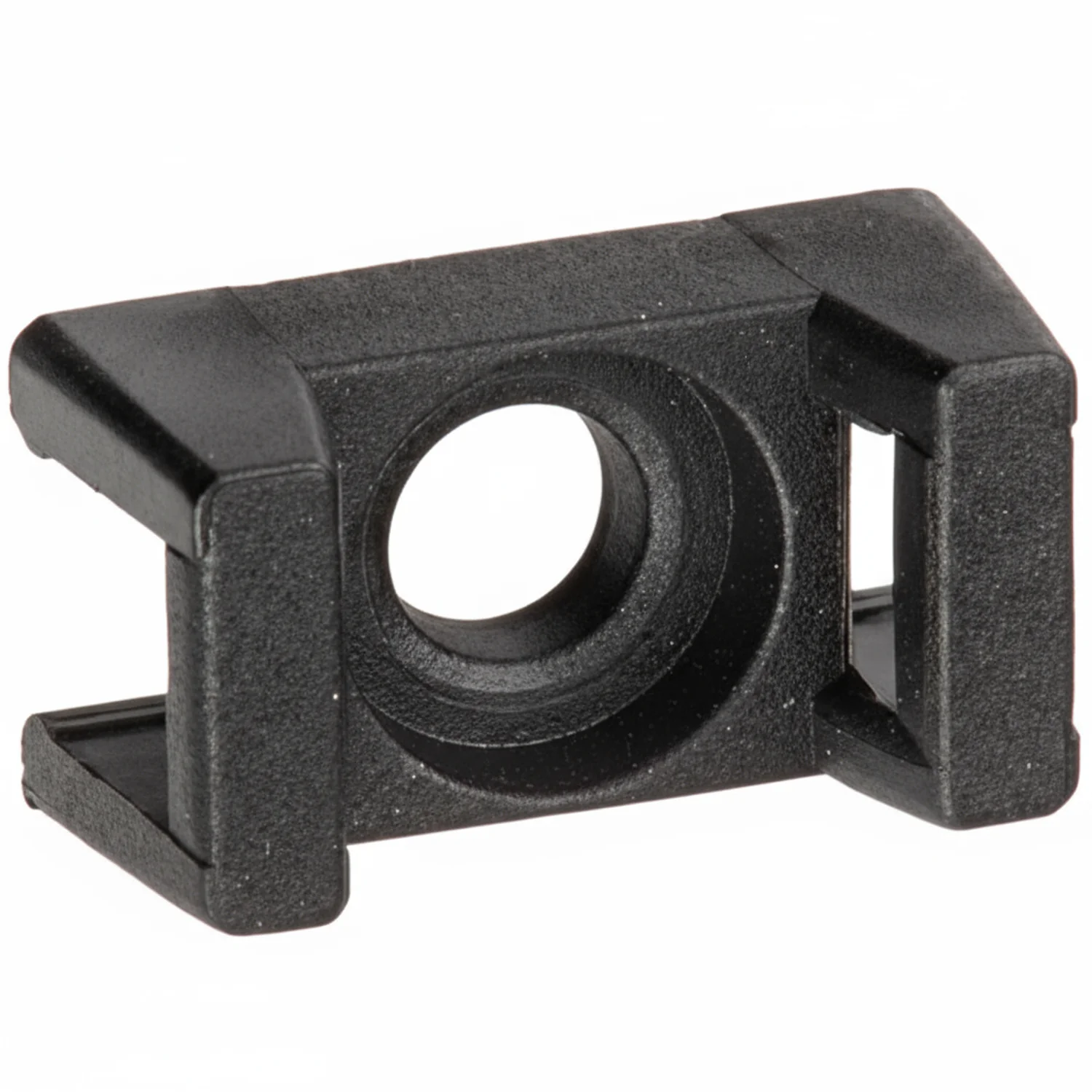

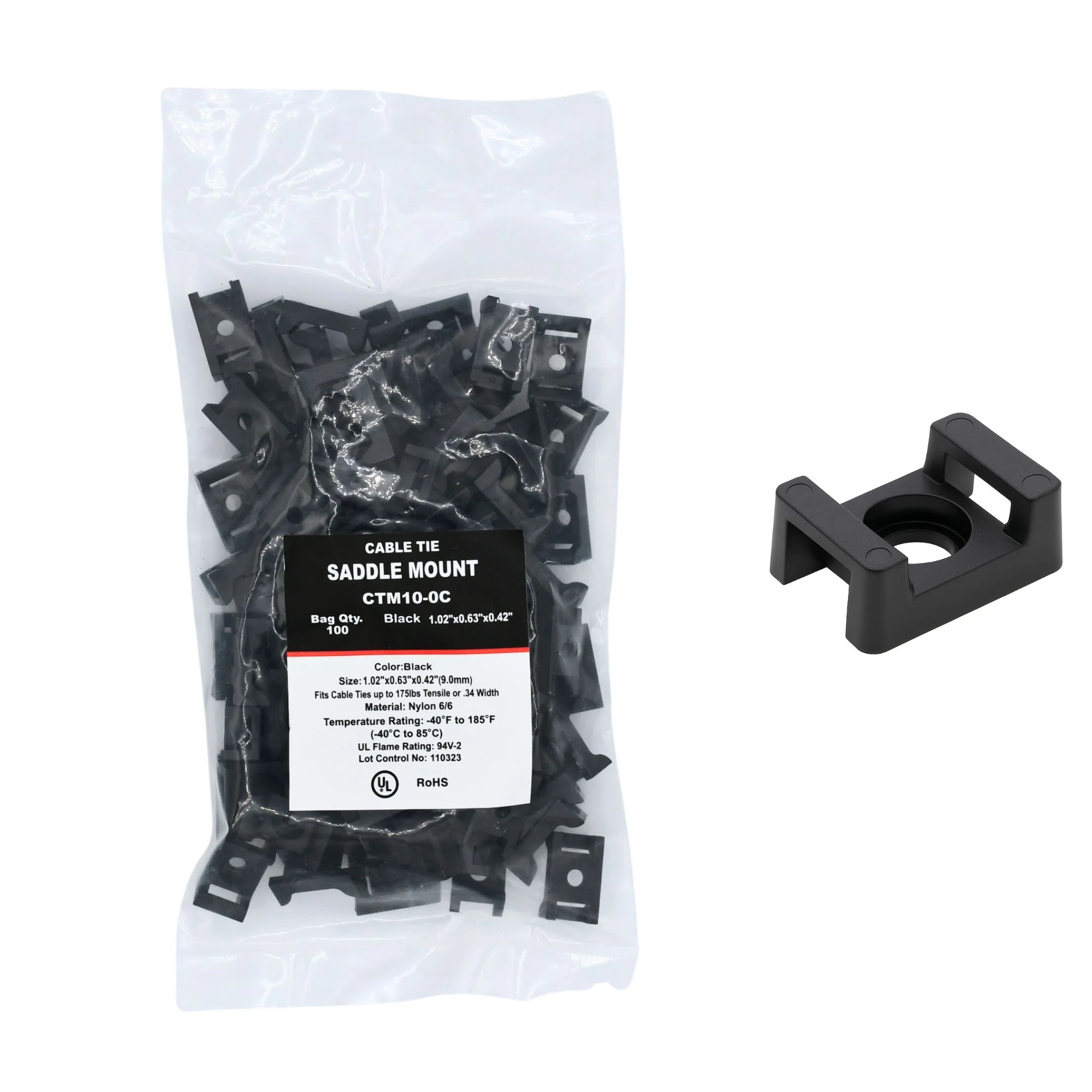

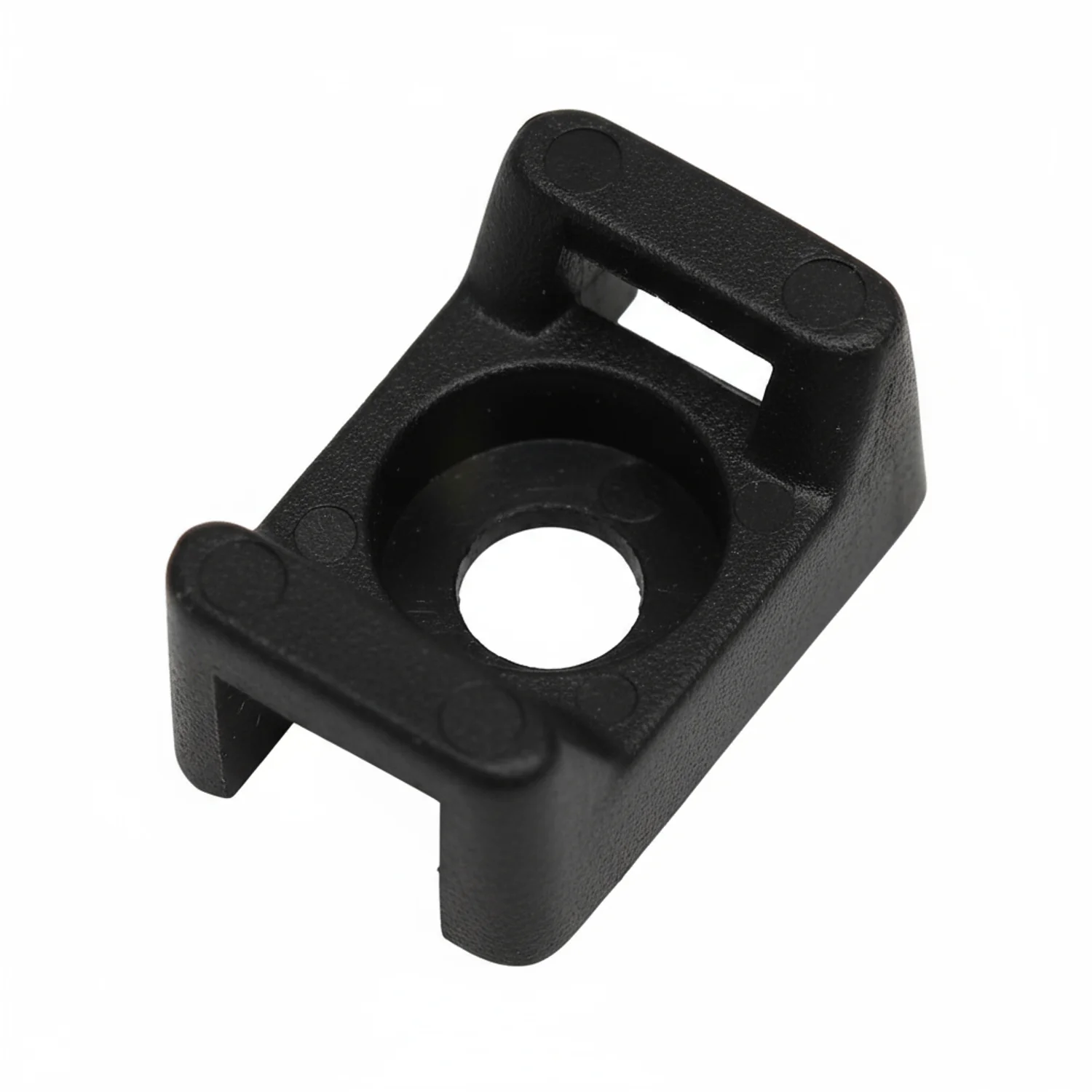

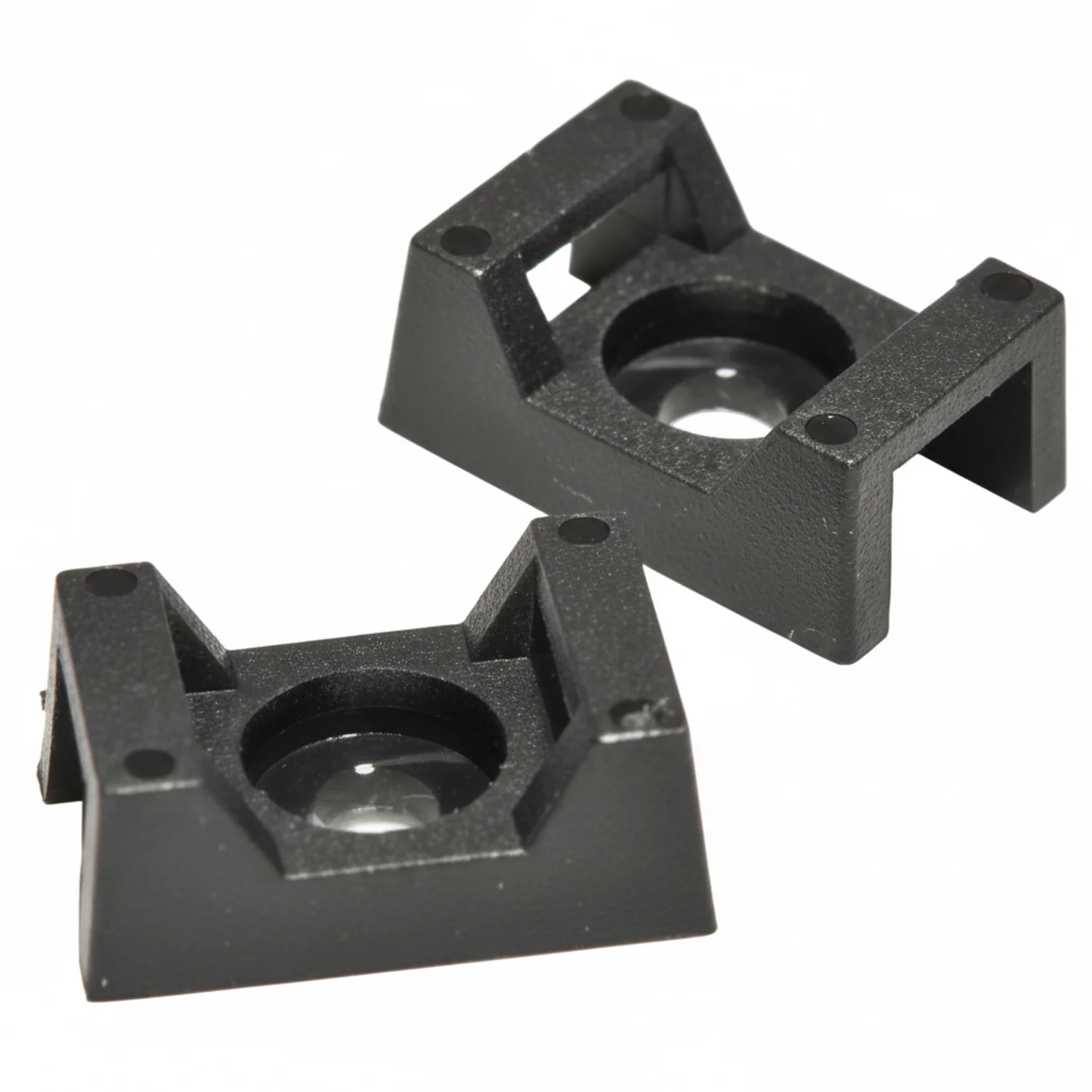

Saddle Support Mounting Base UV Black #10 Screw 100/bag Part #CTM10-0C • Saddle Mounting Base has a recessed hole for a pan head screw • Cradle shape provides a saddle for the wire run • The cable tie is threaded under the bundle and tightened in the usual manner • The recessed screw hole allows cable ties to easily pass over screw head • Saddle Mounts are designed for maximum stability and support when securing cable bundles and tubing • Low profile design keeps bundle close to the mounting surface CTM10-0C Specifications: Color: UV Black Maximum Tie Width: .35"/175lb Tensile Strength Material: Nylon 6/6 Screw Size: #10 Length inch: 0.90 Height Inch: 0.38 Width inch: 0.63 Slot Width Inch: 0.35 Slot Height Inch: 0.12 Hole Dia Inch: 0.21 Counter Sink Dia. Inch: 0.43 Counter Sink Depth Inch: 0.13 Max. Operating Temp. F: 185 Max. Operating Temp. C: 85 Min. Operating Temp. F: -40 Min. Operating Temp. C: -40 Min. Installation Temp. F: 32 Min. Installation Temp. C: 0 UL Listed Type 21 UL Air Handling Approved: UL AH-2 UL Flame Rating: 94V-2 RoHS Compliant
